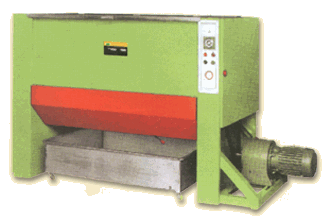

HORIZONTAL DRYING & BLENDING M/C



This maching is more suitable for evenly and rapidly drying, dyeing and
blending plastic materials. It is especially good for mixing up powder and
granulated particles. Owing to the stainless steel lining and blending tool,
it is much simple to operate and clean this machine. Manual set up blending
time. Electric plate and coal oil heating equipment are both available for alternative.


Model
Blending Capacity
Power
Electric Heater
Machine Weight
Machine Size
SP-H300
200-300kgs
3(HP)x4P(30:1)
2.5KWx4Sets
700kgs
1850x950x1400
SP-H400
400-400kgs
3(HP)x6P(30:1)
2.5KWx4Sets
810kgs
2200x950x1400
SP-H500
500-500kgs
5(HP)x4P(50:1)
3.0KWx4Sets
950kgs
2500x650x1400
SP-H600
600-600kgs
5(HP)x6P(30:1)
3.0KWx4Sets
1050kgs
2650x1100x1500
SP-H1000
1000-1000kgs
10(HP)x4P(30:1)
3.0KWx6Sets
1760kgs
3150x1220x1800
SP-H1500
1500-1500kgs
15(HP)x4P(30:1)
2.5KWx8Sets
2300kgs
3740x1300x1950
SP-H2000
2000-2000kgs
20(HP)x4P(30:1)
3.0KWx8Sets
3000kgs
4200x2100x2250
